Jelight SOG-2 Stable Ozone Generator

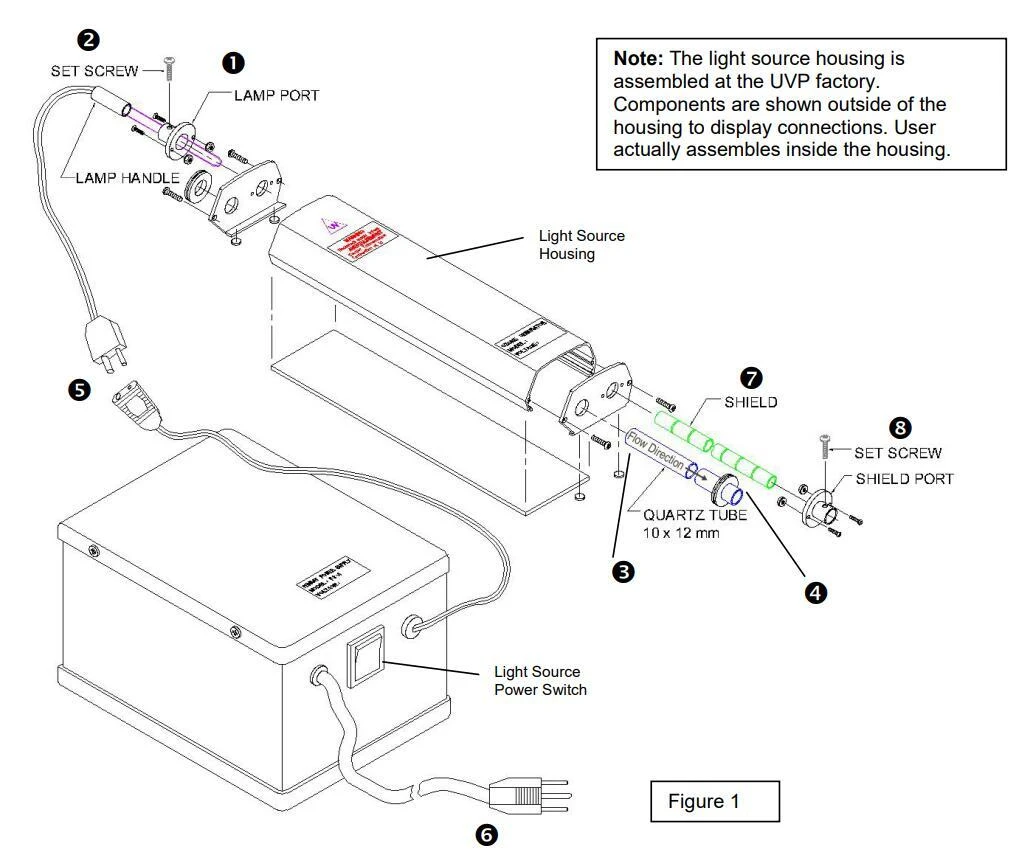

  • SOG-2 Lamp Housing
Price:
$1,745.97
Brand:
Weight:
13.00 LBS
Availability:
Ships in 6-8 weeks
Shipping:
Calculated at checkout
Quantity:


Product Description

Jelight SOG-2 Stable Ozone Generator

produces a continuous, adjustable ozone output using a 185 nm Pen-Ray ultraviolet lamp to convert oxygen into ozone. Available in 115 V and 230 V configurations with an included PS-4 power supply, it supports laboratory calibration, environmental monitoring, and controlled oxidation research.

Applications

Ozone Analyzer Calibration

Provides an adjustable ozone source for laboratory calibration, verification, and testing of ozone monitoring instruments. Its photochemical generation method supports controlled ozone concentrations when used with appropriate gas-flow and measurement equipment.

Air Pollution and Environmental Research

Supports atmospheric chemistry studies, air-pollution monitoring research, and laboratory investigations involving controlled ozone generation. Its continuous output accommodates experiments examining ozone behavior under controlled conditions.

Materials Aging and Oxidation Testing

Provides ozone for controlled oxidation and aging experiments involving polymers, elastomers, coatings, and other ozone-sensitive materials. It can be incorporated into laboratory systems designed to evaluate material responses to ozone exposure.

Water Treatment and Chemical Research

Supports laboratory-scale investigations of ozone-based oxidation reactions and water-treatment chemistry. Its output is intended for controlled research rather than validated disinfection or industrial water-treatment applications.

Features

  • Generates ozone photochemically using a 185 nm Pen-Ray mercury lamp.
  • Produces ozone concentrations up to approximately 3.0 ppm at a gas flow of 1.0 L/min under specified test conditions.
  • Adjustable lamp shield allows control of ozone production.
  • Removable Pen-Ray lamp facilitates maintenance and replacement.
  • Designed for operation with dry air or oxygen.
  • Includes a Jelight PS-4 power supply in the selected voltage configuration.

Specifications

Model SOG-2
Generator Type UV photochemical ozone generator
Ozone Production Up to approximately 3.0 ppm at 1.0 L/min
UV Source Low-pressure mercury Pen-Ray lamp
Ozone-Producing Wavelength 185 nm
Lamp Lighted Length 228.6 mm (9 in)
Process Gas Dry air or oxygen
Ozone Adjustment Adjustable lamp shield
Lamp Configuration Removable Pen-Ray lamp
Power Supply Jelight PS-4 (included)
Input Voltage 115 V AC or 230 V AC (model dependent)
Input Frequency 60 Hz (115 V) / 50 Hz (230 V)
Generator Housing Dimensions (L × W × H) 279 × 95.3 × 45.7 mm (11 × 3.75 × 1.8 in)

Ozone output depends on gas composition, flow rate, temperature, pressure, and lamp exposure. The specified performance is based on documented test conditions using dry air at 25 °C (77 °F) and 760 mmHg.

Available Variants

Part Number Input Voltage Input Frequency Included Power Supply
97-0067-01 115 V AC 60 Hz PS-4 (99-0004-01)
97-0067-02 230 V AC 50 Hz PS-4 (99-0004-02)

Frequently Asked Questions

How does the SOG-2 differ from the SOG-1?

The SOG-2 uses a longer Pen-Ray lamp and provides a higher specified ozone output of approximately 3.0 ppm at 1.0 L/min, compared with the SOG-1's approximately 0.8 ppm at 0.5 L/min. The SOG-2 also includes a PS-4 power supply rather than the PS-1 used by the SOG-1.

Can the SOG-2 ozone concentration be adjusted?

Yes. The SOG-2 includes an adjustable lamp shield that changes the UV exposure available for ozone generation. Actual concentration also depends on gas flow rate, composition, and operating conditions, so an appropriate ozone analyzer should be used when accurate concentrations are required.

Does the SOG-2 include its own power supply?

Yes. Each SOG-2 includes a Jelight PS-4 power supply matched to its input-voltage configuration. The 115 V model includes PS-4 part number 99-0004-01, while the 230 V model includes 99-0004-02.

What process gases and tubing materials are recommended?

The SOG-2 is designed for use with dry air or oxygen. Ozone-resistant tubing, such as PTFE, is recommended because natural rubber and certain plastics can react with ozone, reducing delivered concentrations and potentially introducing contaminants.

What safety precautions are required when operating the SOG-2?

Ozone is hazardous when inhaled, and the internal UV lamp produces harmful ultraviolet radiation. Operate the generator with appropriate ozone containment, ventilation, and exhaust treatment; avoid direct UV exposure, and disconnect electrical power before servicing the lamp or generator. Follow applicable workplace ozone exposure limits and safety procedures.

Warranty

This product is covered by a 12-month warranty against defects in materials and workmanship. Inspect the product before use and contact ScienceLighting support if any defects or issues are identified.

Ordering

Have additional questions? Contact ScienceLighting at (650) 961-9031 or sales@sciencelighting.com.


Warranty Information

The Jelight SOG-2 Stable Ozone Generator is warranted against defects in materials and workmanship under normal use and service. Please inspect all protective equipment before each use. For warranty assistance, replacement parts, product support, or application guidance, contact ScienceLighting technical support. Warranty valid for 12 months.
