The Ushio UXL-S150M-O is a 150 watt, double-ended xenon short arc lamp. This high stability xenon lamp is designed for very long life, typically operating reliably for 3000 hours. This item is made by Ushio, and equivalent to Hamamatsu L14286 and the older L2274, and can also replace the ozone producing version p/n L2273.  This may also be known as 5000375, UXLS150MO, UXL-S150MO, UXL-S150M-O and other variations.

Applications

• KLA Inspection Tools:  Models 2138, 2139,

• Waters Scanning Fluorescence Detectors: Models 470, 474.

Specifications

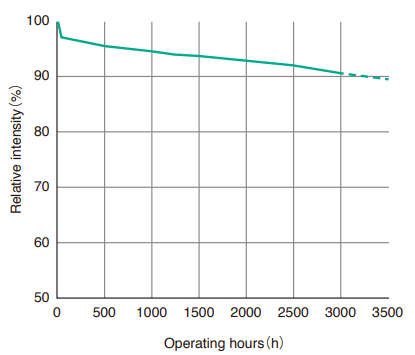

• Typical Luminous intensity (Continuous Use)

• • Frequent switch may cause shorter life.

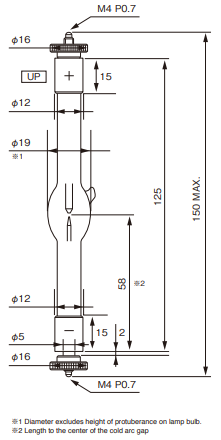

• Dimensions

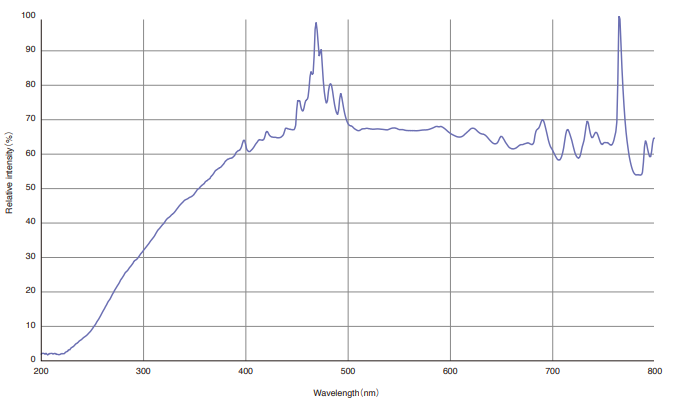

• Relative Spectral Intensity

Cross Reference

050-657479-00, 501-680368-00, L14286 (low ozone), L2274 (low ozone), L2273 (ozone), KLA 213X, Stealth2351

Product Warning

Xenon Short Arc lamps emit harmful ULTRAVIOLET RADIATION, are under HIGH PRESSURE, require a HIGH VOLTAGE ignition, and can GENERATE OZONE (unless designated "OFR".) These lamps get VERY HOT during operation, and remain hot after operation for a significant time. Avoid direct or reflected exposure as this can cause serious skin burns and eye injury. This lamp should only be operated in properly designed and maintained equipment. Proper protective gear should be worn at any time the lamps are to be handled.
