Ushio SMR-200/D1

Ushio SMR-200/D1
  • Ushio SMR-200/D1
Price:
$548.97
SKU:
USH 5001399
Brand:
Weight:
1.00 LBS
Rating:
5 Stars ( 2 product reviews )
Availability:
In Stock & No Tax outside WA
Shipping:
Free Shipping
Quantity:
Buy in bulk and save

Product Description

Ushio SMR-200/D1 — EmArc® Enhanced Metal Arc Lamp (P/N 5001399)

is a 160–200 W DC discharge lamp with an integrated 70 mm reflector, engineered for high-luminance, fiber-optic illumination and precision optical systems. A tightly confined 1.2 mm arc, Xenon-like 6500 K color temperature, and reflector alignment optimized for a 6 mm aperture at 52 mm from the rim deliver excellent light collection efficiency into small-diameter bundles. EmArc technology blends rare gas and metal additives to combine the best traits of Xenon, metal-halide, and mercury sources—offering hot re-ignition, up to 60 lm/W efficacy, and long service life with no internal cold pressure. Rated life is 2,000 hours (50% spherical lumen depreciation at a 2h45 on/15 min off duty cycle).

Applications

Medical & Life Sciences

  • Endoscopy/headlight illumination and surgical visualization via fiber bundles.
  • Biotechnology, microscopy, and boroscopy requiring high luminance and stable color.

Industrial & Manufacturing

  • Machine vision and inspection systems demanding tight optical coupling.
  • UV/visible curing of light-sensitive resins and adhesives (system-dependent optics).

Entertainment & Projection

  • Specialty lighting, followspots, and effects that benefit from Xenon-like white output.

Features & Benefits

  • High coupling efficiency: 1.2 mm arc in a 70 mm reflector aligned for a 6 mm aperture at 52 mm from the rim to maximize throughput into fiber bundles.
  • Bright, white output: Xenon-like 6500 K CCT for crisp imaging and color fidelity.
  • Long service life: 2,000 h typical (defined at 50% spherical lumen depreciation under specified duty cycle) to reduce lamp change frequency.
  • Hot re-ignition & DC operation: Reliable restarts and compatibility with compact, lower-cost DC power supplies.
  • Stable color & efficacy: Up to 60 lm/W with better color control over life than conventional metal-halide sources.
  • Made in USA & rugged optics: Durable reflector construction designed for high light-path efficiency.

Specifications

Model / Ordering Code SMR-200/D1 — P/N 5001399
Technology EmArc® Enhanced Metal Arc (DC gas-discharge)
Rated Power 160–200 W (DC)
Lamp Voltage / Current ≈43 V / ≈4.65 A (nominal)
Arc Gap 1.2 mm
Correlated Color Temperature 6500 K (±500 K typical)
Luminous Flux (through aperture) ≈5100 lm through 6 mm aperture (at 52 mm from reflector rim)
Reflector Integrated, 70 mm (aligned for max throughput to 6 mm aperture at 52 mm)
Rated Life 2,000 h (50% spherical lumen depreciation at 2h 45 ON/15 min OFF duty cycle)
Hot Re-ignition Yes (system dependent)
Mercury Content Contains mercury; manage in accordance with disposal laws; see lamprecycle.org and CA Prop 65 notice.
Made In USA :contentReference[oaicite:23]{index=23}
Recommended Power Supply Ushio SmartArc™ ELDC 2.31 (Item #5002001), 100–200 W programmable DC. [Verify system design.]
Operating Notes Performance depends on optical setup, alignment, and power-supply settings. Follow Ushio guidelines.

Optional Accessories

  • Ushio SmartArc™ ELDC 2.31 electronic DC power supply (Item #5002001), 100–200 W system wattage.

Documentation

FAQs

Q1: What makes EmArc® different from Xenon or metal-halide?
EmArc® blends rare gas and metal additives, yielding Xenon-like 6500 K color with higher efficacy and better color stability over life than conventional metal-halide, plus hot re-ignition and no internal cold pressure.

Q2: Is SMR-200/D1 optimized for fiber optics?
Yes. The 1.2 mm arc and 70 mm reflector are aligned for maximum throughput through a 6 mm aperture at 52 mm from the reflector rim, ideal for small-diameter fiber bundles.

Q3: What light output should I expect?
Nominal ≈5000 lumens measured through a 6 mm aperture (optical setup dependent).

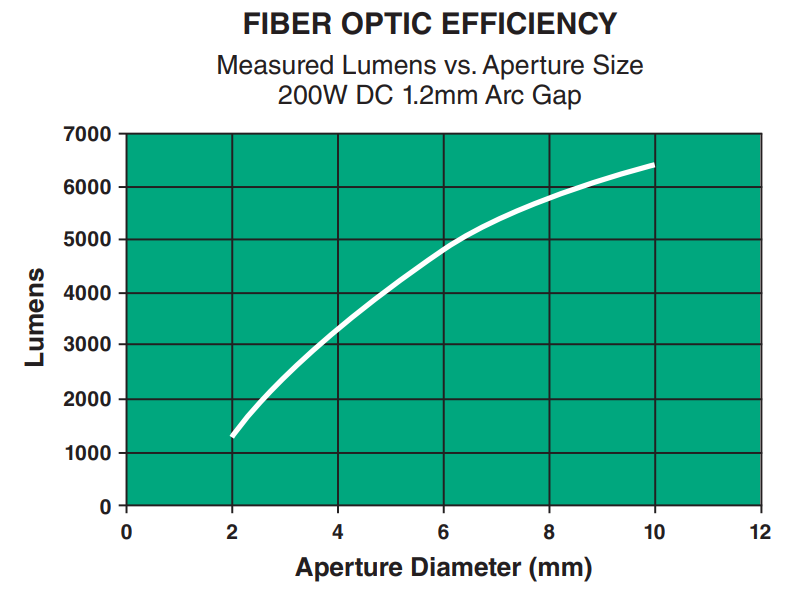

Fiber Optic Efficiency of SMR-200

Q4: What is the typical life?
2,000 hours defined at 50% spherical lumen depreciation using a 2h45 ON/15 min OFF cycle. Actual life depends on operating conditions and power supply.

Q5: Which power supply should I use?
Ushio’s SmartArc™ ELDC 2.31 (Item #5002001) supports 100–200 W DC operation and is commonly paired with 200 W EmArc lamps. Verify your system’s electrical and optical requirements.

Q6: Does the lamp contain mercury?
Yes. Handle and dispose of the lamp according to local regulations; see lamprecycle.org and CA Prop 65 guidance.

Ordering

Choose SMR-200/D1 (5001399) for compact, high-luminance fiber-optic illumination with Xenon-like color and long life. Verify power-supply compatibility (200 W DC), optical alignment at 52 mm working distance, and fiber aperture (6 mm typical). Click Add to Cart to purchase online or Request a Quote for formal procurement.

Regulatory notice: Contains mercury. Manage in accordance with disposal laws. See lamprecycle.org and California Prop 65.

re to be handled.

Warranty Information

Manufacturer's Warranty:
The manufacturer warrants its products to be free of detects in materials and workmanship for the stated period from date of original purchase invoice. All warranties or merchant ability and fitness for any purpose and all other warranties, expressed or implied, except those expressly set forth herein, are deemed waived and excluded. Manufacturer's duty under the warranty is limited to replacement and/or repair of the defective part at their exclusive option. Seller shall not be liable for any expenses or damages incurred by the purchaser except as expressly set forth herein, and in no event shall seller or manufacturer be liable for any special, incidental or consequential damages of any kind. This warranty does not supersede any statutory rights that may be available in certain countries. The foregoing manufacturer's warranty of shall be voided, and of no force and effect if buyer has modified or damaged the product.

Find Similar Products by Category

Write your own product review

Product Reviews

  1. In stock 5 Star Review

    Posted by on 28th Aug 2025

    Hard to find! In stock and shipped quick.

  2. The product was arrived in a week and works fine 5 Star Review

    Posted by on 4th Nov 2016

    The product was arrived in a week and works fine. I tried the light bulb and it works well. I just start to use it so that I don't know whether it will last 2000 hours as indicated in this webpage. so far it's good.
