Ushio's reliable SMARTARC™ electronic power supply with digital power management and microprocessor controls is a compact and "intelligent" solution for operating DC powered arc discharge lamps.

Applications

Compatible lamps:

• OSRAM: HBO 50, HBO100, HBO103, XBO 75, XBO 100
• USHIO: SHL-50, SMR-75, UXL-75, UXL-102, USH-102D, USH-102DH, UXL-103, USH-103D

Features

• Versatile Power Output: Operates short arc mercury and xenon DC lamps with selectable output power ranges of 50W, 75W, and 100W, easily adjusted via a DIL 16 step switch.

• Global Compatibility: Features power factor corrected line input and a built-in EMI-filter, accommodating a wide voltage range from 90VAC to 264VAC. It also meets CE & FCC Part "A" standards.

• Integrated Cooling: No external cooling is needed thanks to the built-in cooling fan, simplifying your system design.

• Enhanced Lamp Life: Incorporates a newly designed anti-aging and arc control circuit, ensuring high optical reliability over the entire lamp lifetime.

• Stable & Precise Control: Digital power management and microprocessor controls provide high output stability throughout the life of the unit.

• Robust Protection: Includes essential safety features such as output short circuit protection, arc to ground protection, and a 90°C thermal shut-off.

• Automatic Shut-Off: Features an auto shut-off function at the end of lamp life or in case of lamp failure, protecting your investment.

• Auxiliary Power: Provides a regulated 12V/0.2A output for fan drive, available when the lamp is in operation.

• Flexible Ignitor Options: Available as the HBX 76 with an "on-board" ignitor or the HBX 76i with an "off-board" ignitor, offering installation flexibility. (Call us at 800-229-6509 to order off-board ignitor version.)

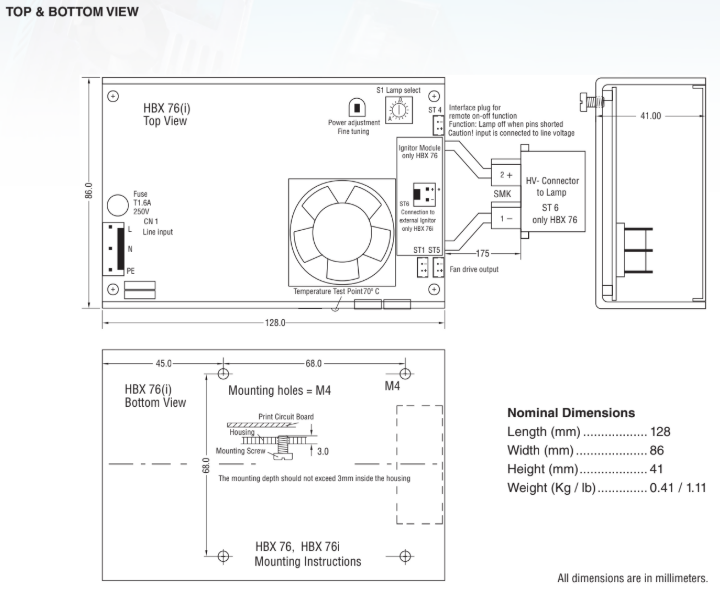

Specifications

• Electrical: All Data at 25° ±5°C, unless otherwise noted:

Voltage/Current/Wattage depends on lamp selected with pre-set switch.

• Lifetime:  >25,000 hours, in accordance with MIL HDBK for nominal operation.

• Efficiency:  80% nominal, Tolerance: 75%-80%

• Operating Environment:

  • Ambient Temperature (°C):  +25, Tolerance: +10-+50

  • Max. Temperature at Test Point (°C):  +70 (Case surface near output at U-profile)

  • Switch Off Temperature (°C):  +90, Tolerance: +85-+95

• Auxiliary Power: Two 12V terminals; one for built-in fan and another for an external fan, with a combined maximum output current of 200mA (leaving 135mA for an external fan).  The 12V output voltage is only available when the lamp is in operation.

• Environmental Requirements:

• Standards & Safety: These power supplies comply with safety and performance standards including CSA C22.2 No.60950, UL60950, and UL508. CB-Test and UL certifications must be completed with the final product.

AKA:  HBX76-G2-S5. HBX76 and HBX76i

Made in Germany by Hansmann Electronic and sold in USA exclusively under the Ushio America brand.

Download the full SmartArc™ HBX 76 & HBX 76i Datasheet (PDF) for complete details, including diagrams and further technical information.

---
