The Hamamatsu L14286 (previously L2274) is a 150 watt, double-ended xenon short arc lamp. This high stability xenon lamp is designed for very long life, with 2000 hours standard usage between maintenance cycles, and typically operates reliably for 3000 hours. This item is made by Hamamatsu in Japan, and equivalent to to the older L2274, and can also replace the ozone producing version p/n L2273.
KLA Inspection Tools: Models 2138, 2139,

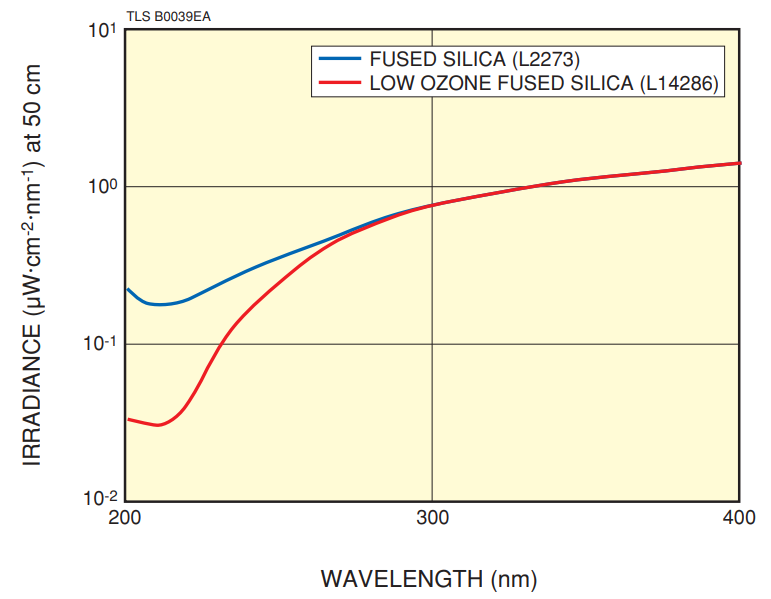

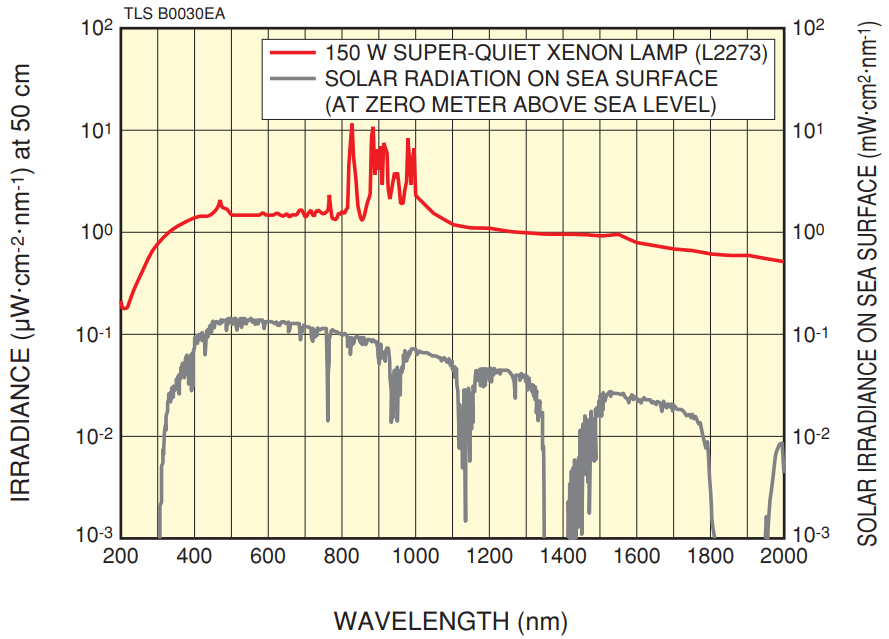

Spectral Irradiance:
Item Type |
Xenon |
Voltage |
17.5 |
Wattage |
150 |
Amperage |
8.5 |
Light Output Stability Drift (Typ.) |
±0.5%/hr |
Light Output Stability Fluctuation (p-p) Max. |
1% |
Burn Position |
Vertical ±5° |
Burn Finish |
CLEAR |
Color Temp (K) |
6000 |
Arc Gap (mm) |
2.05 |
Candle Power (cd) |
280 |
Contact to Contact (mm) |
125 |
Efficacy (lm/W) |
19.3 |
Initial Lumens (lm) |
2900 |
Luminous Flux (lm) |
3800 |
Typical Lifetime (hr) |
3000 |
Diameter (mm) |
19.0 |
MOL (mm) |
150 |
Light Center Length (mm) |
58 |
050-657479-00, 501-680368-00, L14286 (low ozone), L2274 (low ozone), L2273 (ozone), KLA 213X, Stealth 2351
Xenon Short Arc lamps emit harmful ULTRAVIOLET RADIATION, are under HIGH PRESSURE, require a HIGH VOLTAGE ignition, and can GENERATE OZONE. These lamps get VERY HOT during operation, and remain hot after operation for a significant time. Avoid direct or reflected exposure as this can cause serious skin burns and eye injury. This lamp should only be operated in properly designed and maintained equipment. Proper protective gear should be worn at any time the lamps are to be handled.
